Floor-standing, built-in chiller, largest rotary compatibility. Built for larger jewelry and medium assembly — spot, tack, and seam welding, with rotary.
Starting at $14,500
Open (front panel and hand ports removed) or closed (hands-in-glove-port operation) — both configurations are available in blue/white or dark grey.
Open
Complete access to load and position parts.

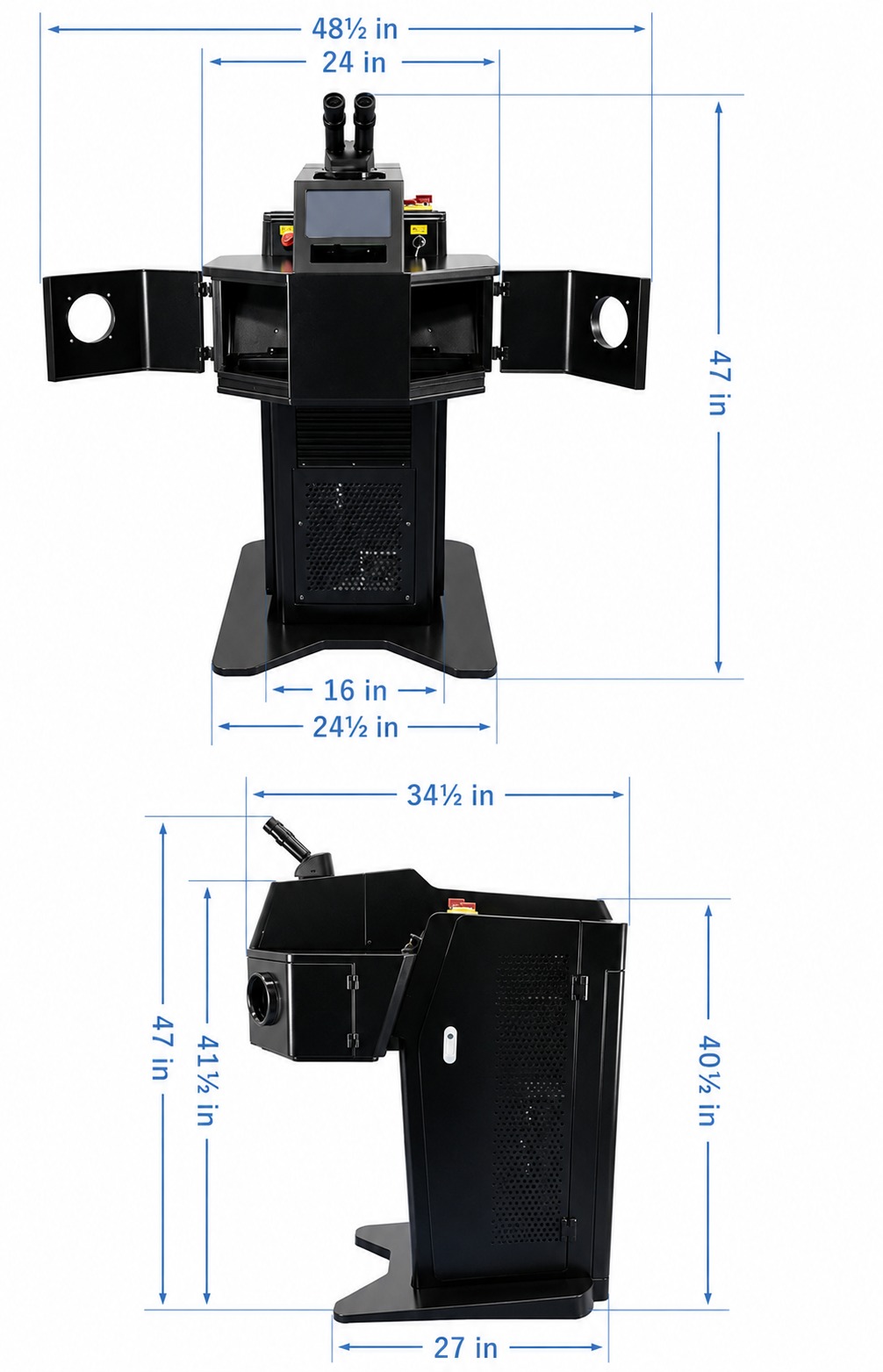

Closed — with dimensions
Enclosed beam path allows operation without safety glasses.
Both configurations are available in either color — blue/white or dark grey.
| Avg power | 200 Watts |
|---|---|
| Max pulse energy | 180 Joules |
| Pulse width | 0.3 – 25 ms |
| Frequency | 1 – 30 Hz |
| Spot / weld size | 0.2 – 2.0 mm |
| Laser type | Nd:YAG · 1064 nm |
| Cooling | Internal chiller (built-in) |
| Power required | 220V · 1-phase · 50/60Hz · 36 Amps |
| Transformer | 8 kVA included |
| Dimensions | 34.6 × 24.0 × 46.9 in (880 × 610 × 1190 mm) |
| Weight | 140 kg · 309 lb |
| Form factor | Pedestal / floor |
| Configuration | Blue/white or dark grey · open (glove ports) or closed |
| Price | From $14,500 |
| Warranty | 1-year parts & labor · 24-hour repair-or-replace available (US-based) |
Pick your options and see the price — order online in a couple of minutes.
