The MaxLase 200P delivers fast, clean, and highly controlled welds across a wide range of materials and applications — with the repeatability that demanding production and repair work require.
Starting at $14,500
Precision pre-tacking of E.B. welded assemblies without electrode contamination.
The MaxLase 200P moves the same 200W Nd:YAG platform into a floor-standing pedestal with a built-in chiller and a motorized work table — for shops running higher volume, tighter tolerances, or wanting a dedicated production station separate from a bench-top unit.
| Avg power | 200 Watts |
|---|---|
| Max pulse energy | 180 Joules |
| Pulse width | 0.3 – 25 ms |
| Frequency | 1 – 30 Hz |
| Spot / weld size | 0.2 – 2.0 mm |
| Laser type | Nd:YAG · 1064 nm |
| Cooling | Internal chiller (built-in) |
| Power required | 220V · 1-phase · 50/60Hz · 36 Amps |
| Transformer | 8 kVA included |
| Confirmed input current | ~32 A @ 220V, 1-phase · 4mm² supply wire minimum |
| Dimensions | 34.6 × 24.0 × 46.9 in (880 × 610 × 1190 mm) |
| Weight | 140 kg · 309 lb |
| Form factor | Pedestal / floor |
| Price | From $14,500 |
| Warranty | 1-year parts & labor · 24-hour repair-or-replace available (US-based) |
On-site full installation · Application development · Operator training · Integrated tilt-rotary (D69 / D80) · Tooling / rotary mounting plate · Lift table · Spare parts (flashlamps & cover glass)
The 8 kVA transformer (110→220V) is standard equipment on every 200P — same as every MaxLase system ships with its transformer included, not an add-on.
| Manual | Standard hand-guided operation |
|---|---|
| Automatic tacking | With optional rotary fixture |
| Automatic seam | With optional rotary fixture |
Typical applications
Aerospace assemblies · medical device welding · sensor pre-tack · E.B. weld pre-tacking · instrumentation · tool & die repair · mold repair · jewelry repair
Materials
Stainless steel, titanium, aluminum, Kovar, Inconel, nickel alloys, copper alloys, gold, silver, platinum, and most metals.

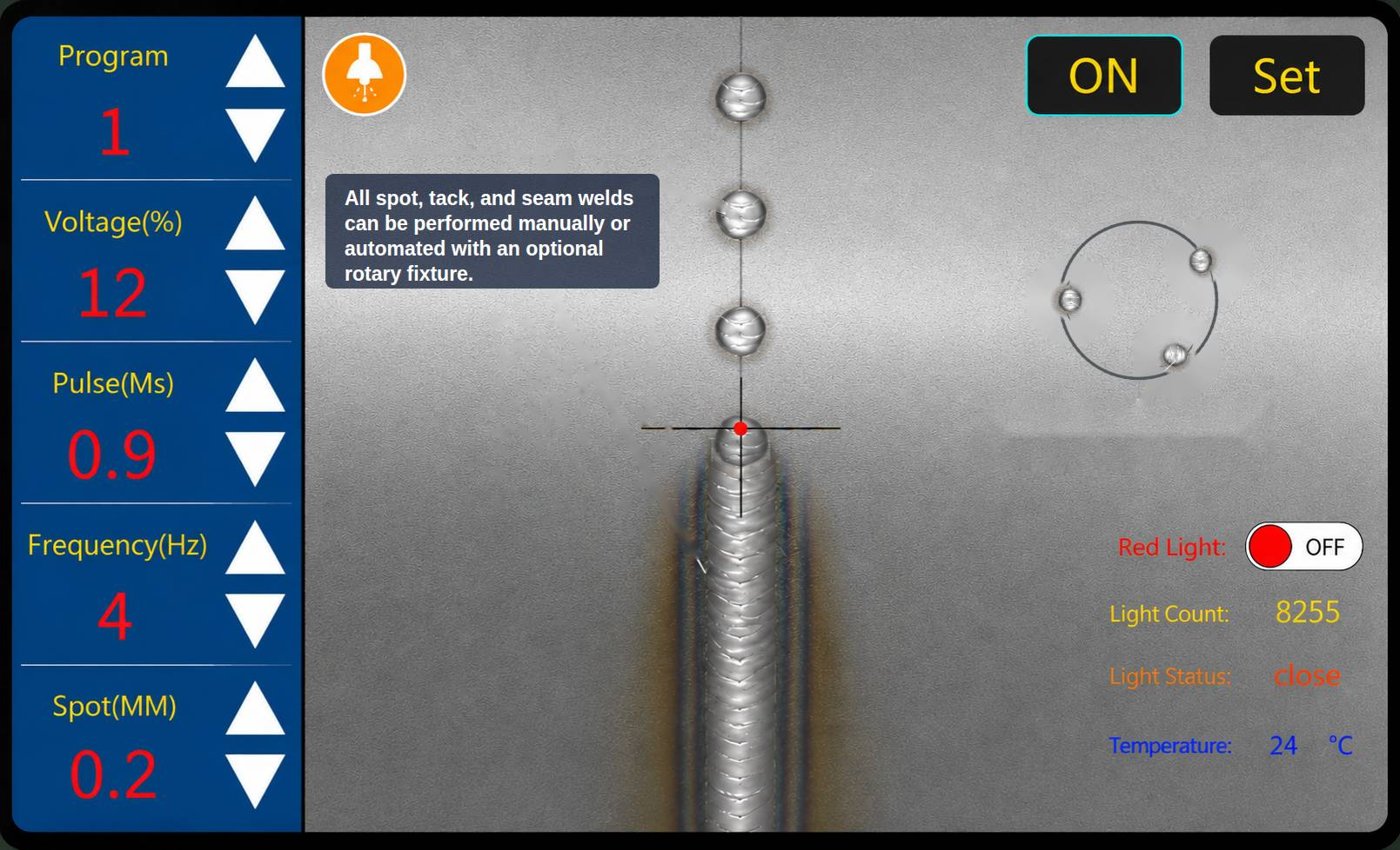

Program, voltage %, pulse (ms), frequency (Hz), spot (mm), and a red-light pointer for setup — plus total pulse count, machine temperature, shutter status, and saved parameter sets. All spot, tack, and seam welds can be performed manually or automated with the optional rotary fixture.

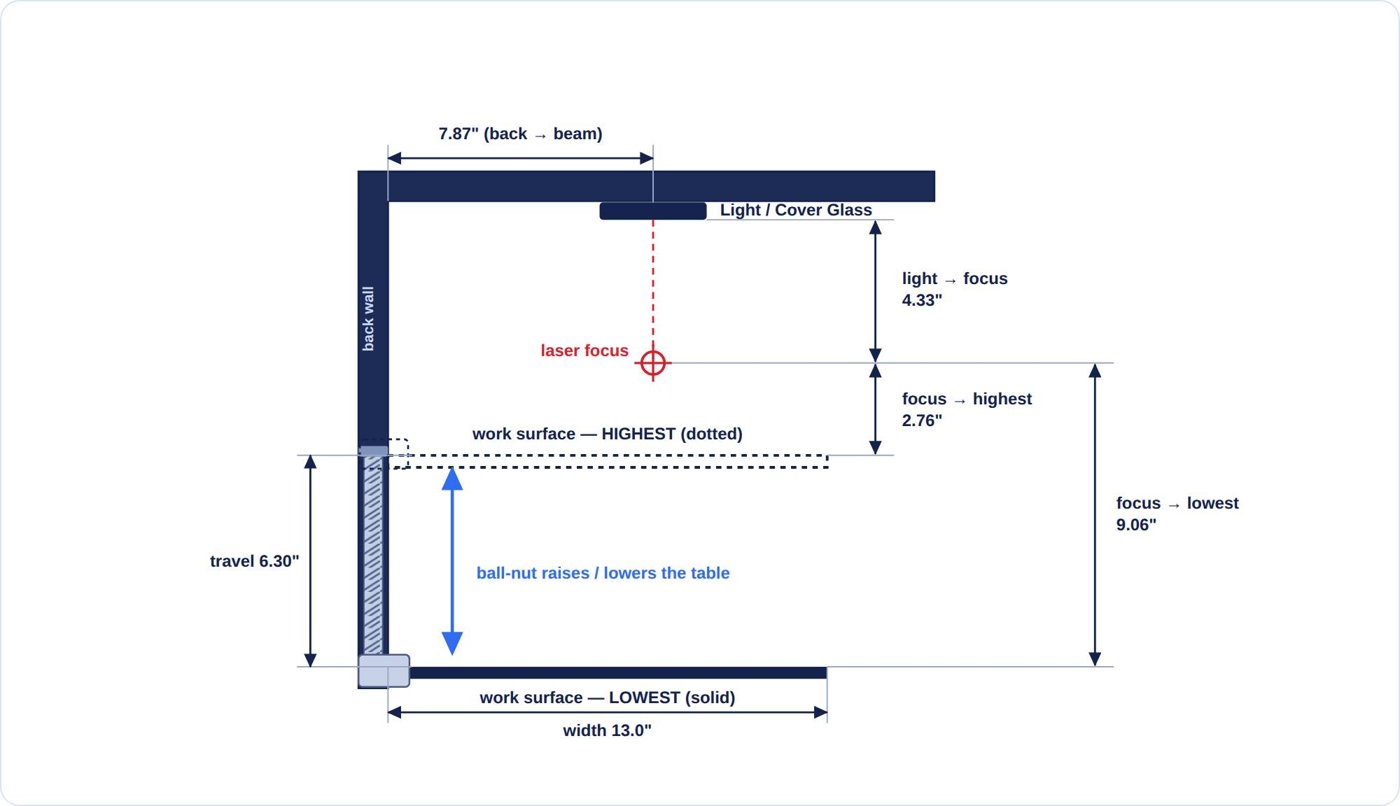

| Work-surface width | 13.0 in (330 mm) |
|---|---|
| Back wall → beam | 7.87 in (200 mm) |
| Light → focus | 4.33 in (110 mm) |
| Motorized base travel | 6.30 in (160 mm) |
| Focus → highest surface | 2.76 in (70 mm) |
| Focus → lowest surface | 9.06 in (230 mm) |
| Table drive | Ballscrew, motorized |
| Beneath work surface | Open — nothing underneath |

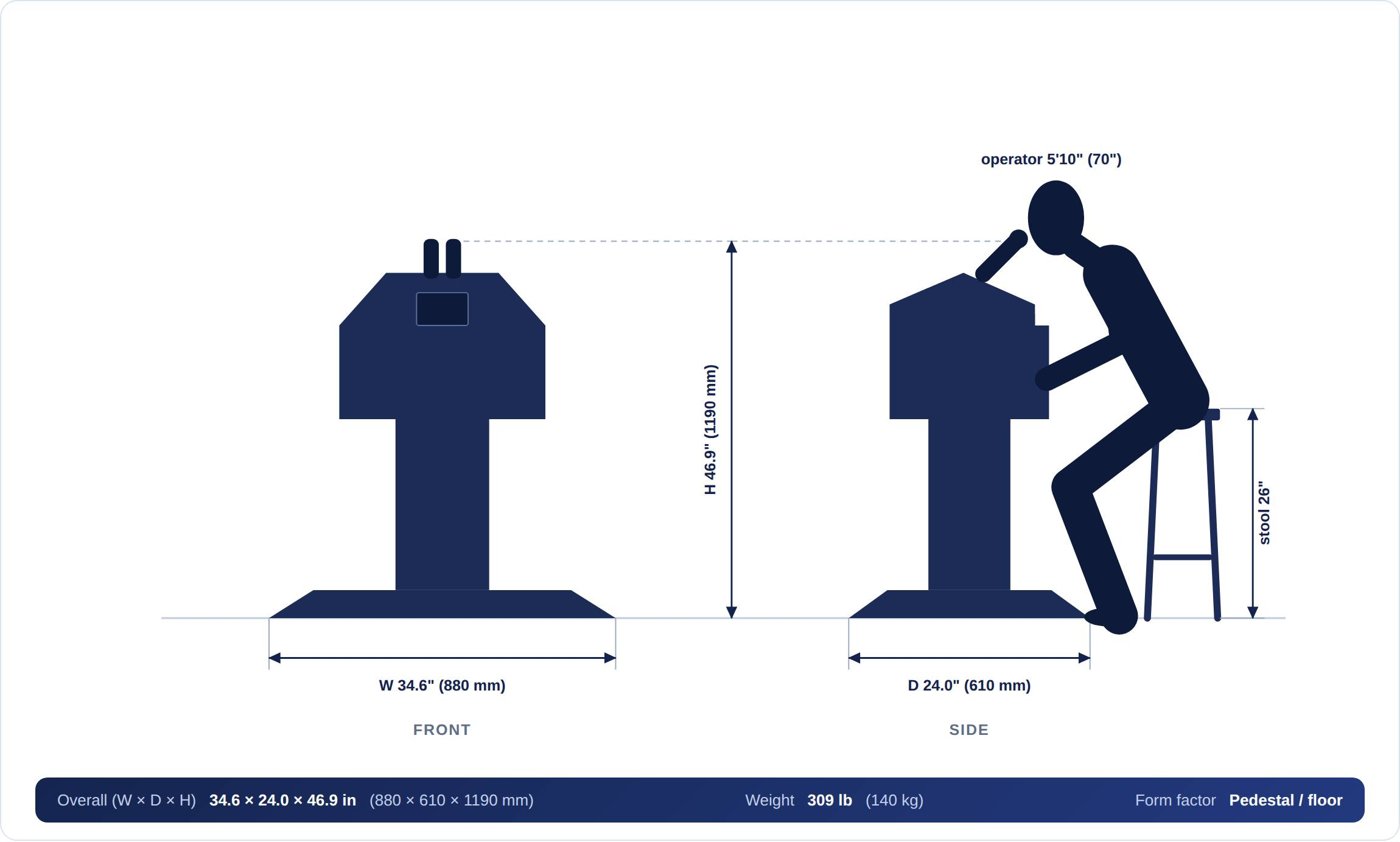

External envelope 34.6 × 24.0 × 46.9 in (880 × 610 × 1190 mm) · 309 lb (140 kg) · shown with a 5'10" operator seated at the microscope on a 26" stool.
Reference settings from the manufacturer. Always test on scrap before running production parts — final settings depend on part geometry, fit-up, and finish requirements.
| Material | Pulse | Current | Frequency | Spot |
|---|---|---|---|---|
| Stainless steel | 2–4 ms | 10–20 A | 3–10 Hz | 0.8–3 mm |
| 18K gold | 1.5–3 ms | 20–40 A | 3–8 Hz | 0.8–2.5 mm |
| 925 silver | 2–3 ms | 60–70 A | 3–6 Hz | 0.3–0.8 mm |
| Red copper | 2 ms | 70–100 A | 2–3 Hz | 0.2–0.6 mm |
| Aluminum | 2–5 ms | 40–60 A | 3–6 Hz | 0.5–1.5 mm |
| 200W reference settings shown as a starting point for the 200P — confirm final parameters on scrap. | ||||
