Max Power. Minimum Price Tag.

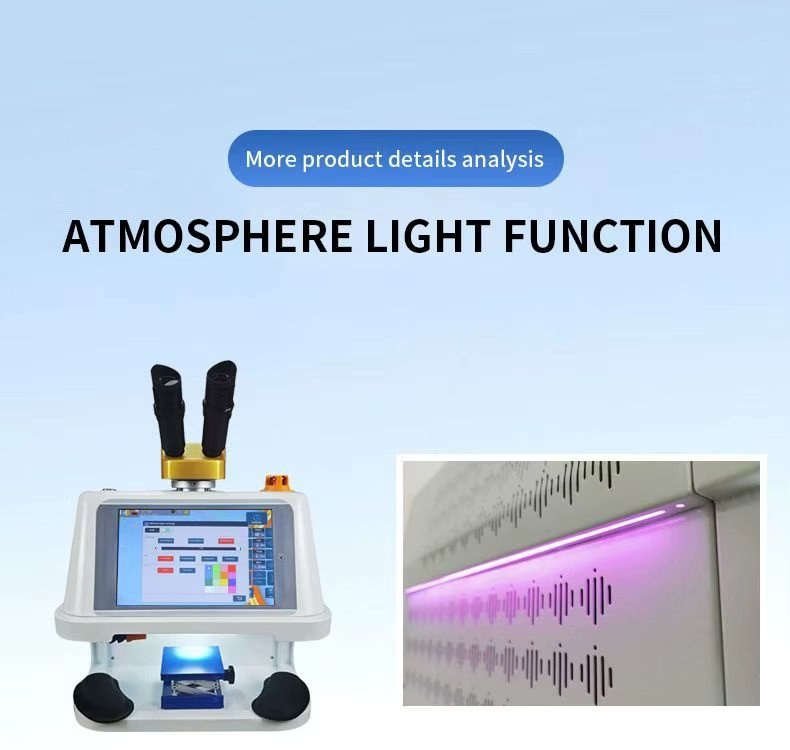

Our highest-power bench-top system — small and powerful, built for demanding repair work and tougher small-parts welding. Loaded with the most advanced control interface in the lineup: voice control, WiFi/Bluetooth, AI assist, ambient lighting, and multimedia playback.
The MaxLase 230B tops out the bench-top lineup with the most pulse energy and highest input power in the range — for shops that need extra margin on thicker material or higher-volume repair work, without moving up to a pedestal system.
The 230B is more than the highest-power bench-top system — its articulating touchscreen brings smart-device convenience to the bench.
| Laser type | Nd:YAG, 1064 nm |
|---|---|
| Average laser power | 230 W |
| Pulse width | 0.1–10 ms |
| Frequency | 0–15 Hz |
| Spot / weld size | 0.2–3.0 mm |
| Max pulse energy | 180 J |
| Cooling | Built-in water chiller |
| Transformer included | 4 kVA |
| Power supply | 220V, 1-phase, 50/60Hz |
| Confirmed input current | ~18 A @ 220V, 1-phase · 2.5mm² supply wire minimum |
| Dimensions (L×W×H) | 660 × 410 × 350 mm |
| Weight | 43 kg (95 lb) |
| Class | Bench-top |
| Tilt-rotary compatibility | D69 |
| X-Y table compatible | Yes |
| Warranty | 1-year parts & labor · 24-hour repair-or-replace (US-based) |
Input power rating is electrical draw, not optical output. Actual weld penetration varies by material, thickness, and purity — see application guidance below or contact us with your part specs.
Reference settings from the manufacturer. Always test on scrap before running production parts — final settings depend on part geometry, fit-up, and finish requirements.
| Material | Pulse | Current | Frequency | Spot |
|---|---|---|---|---|
| Stainless steel | 2–4 ms | 10–20 A | 3–10 Hz | 0.8–3 mm |
| 18K gold | 1.5–3 ms | 20–40 A | 3–8 Hz | 0.8–2.5 mm |
| 925 silver | 2–3 ms | 60–70 A | 3–6 Hz | 0.3–0.8 mm |
| Red copper | 2 ms | 70–100 A | 2–3 Hz | 0.2–0.6 mm |
| Aluminum | 2–5 ms | 40–60 A | 3–6 Hz | 0.5–1.5 mm |
| 200W reference settings shown as a starting point for the 230B — confirm final parameters on scrap. | ||||
We'll confirm base, rotary, and accessory fit for your application before you order.
